TECHNICAL RIDER

Rajasthan Heritage Brass Band

Stage Plan

Stage layout and microphone requirements for the Rajasthan Heritage Brass Band.

Instruments

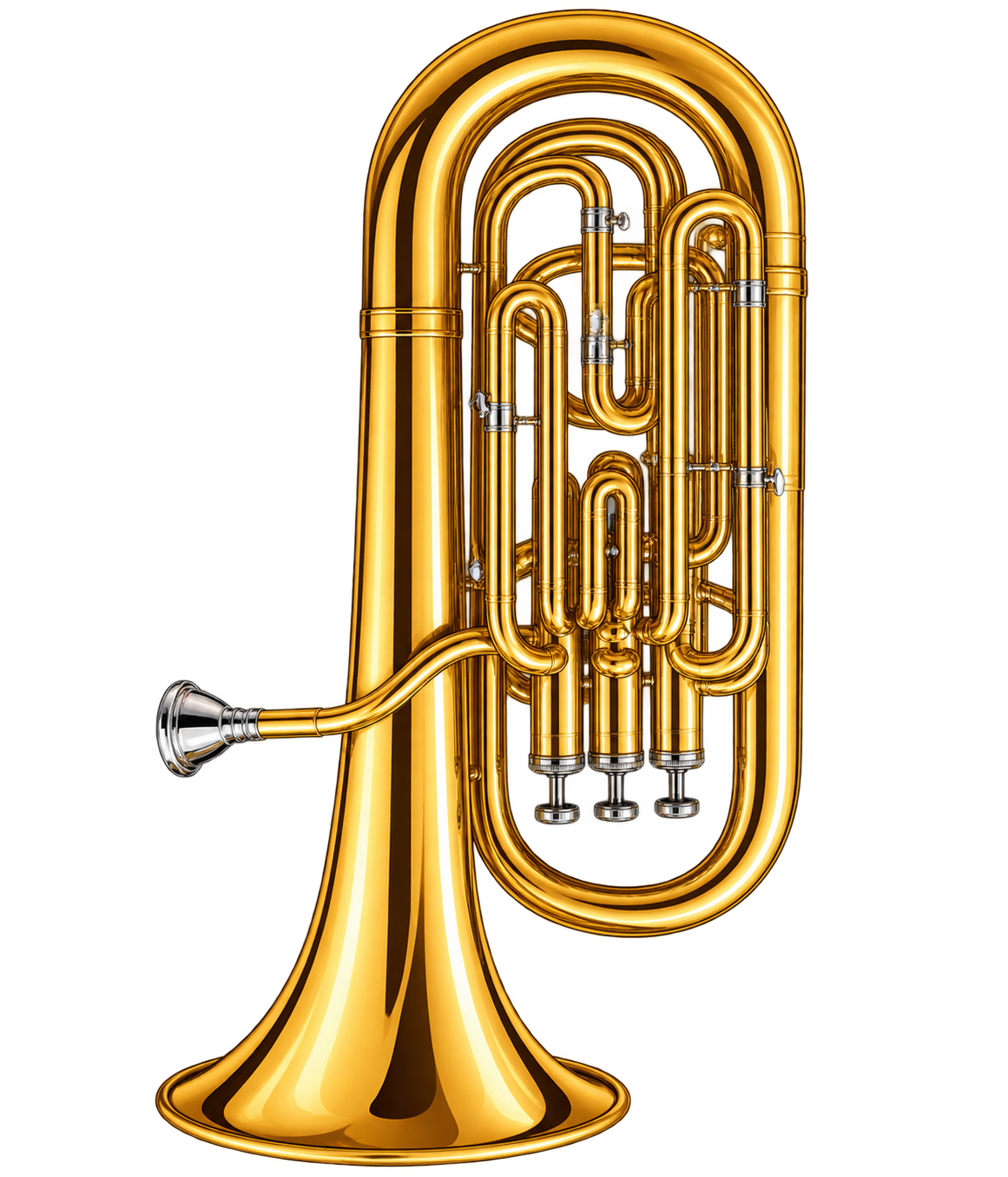

Euphonium
Euphonium

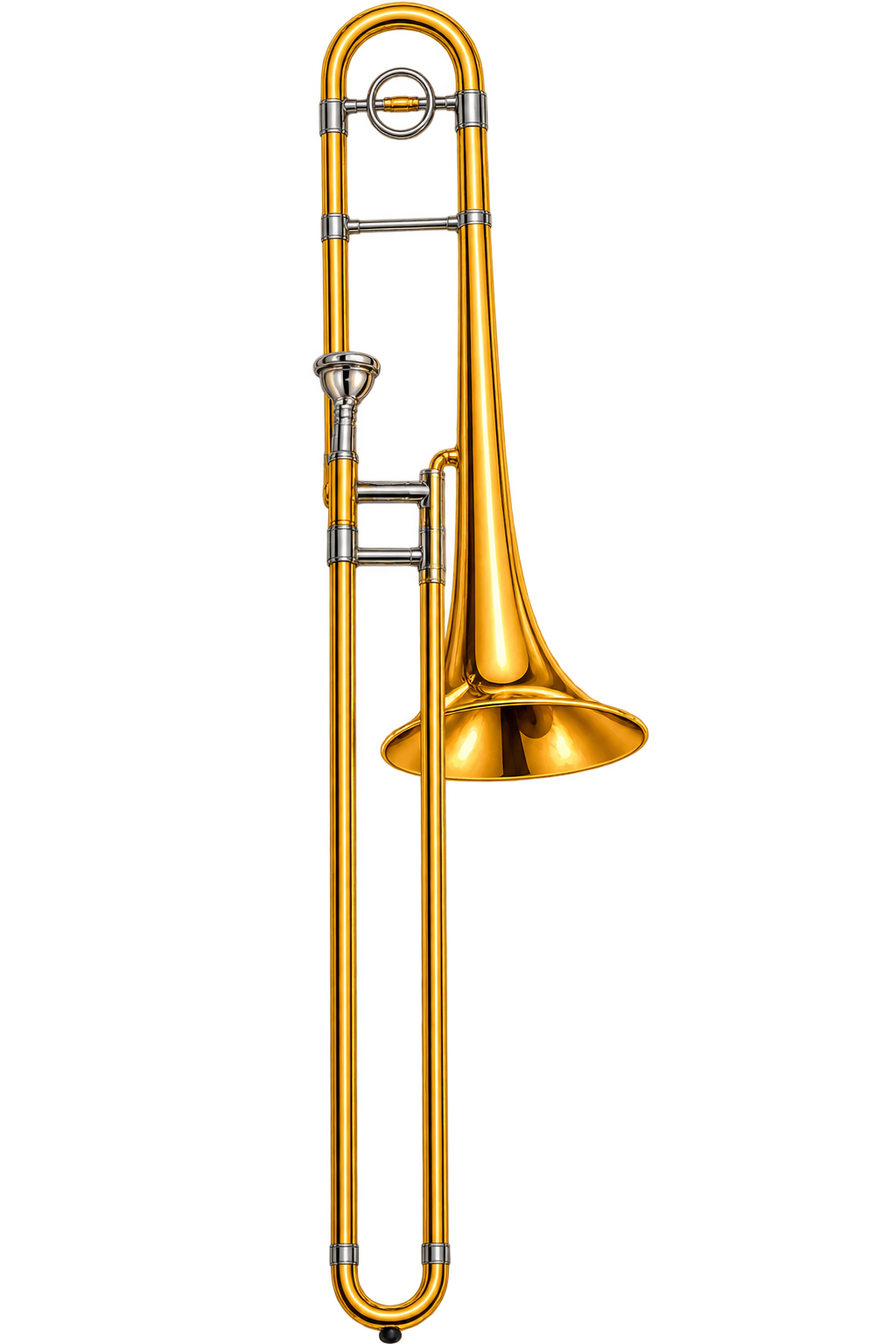

Trombone
Trombone

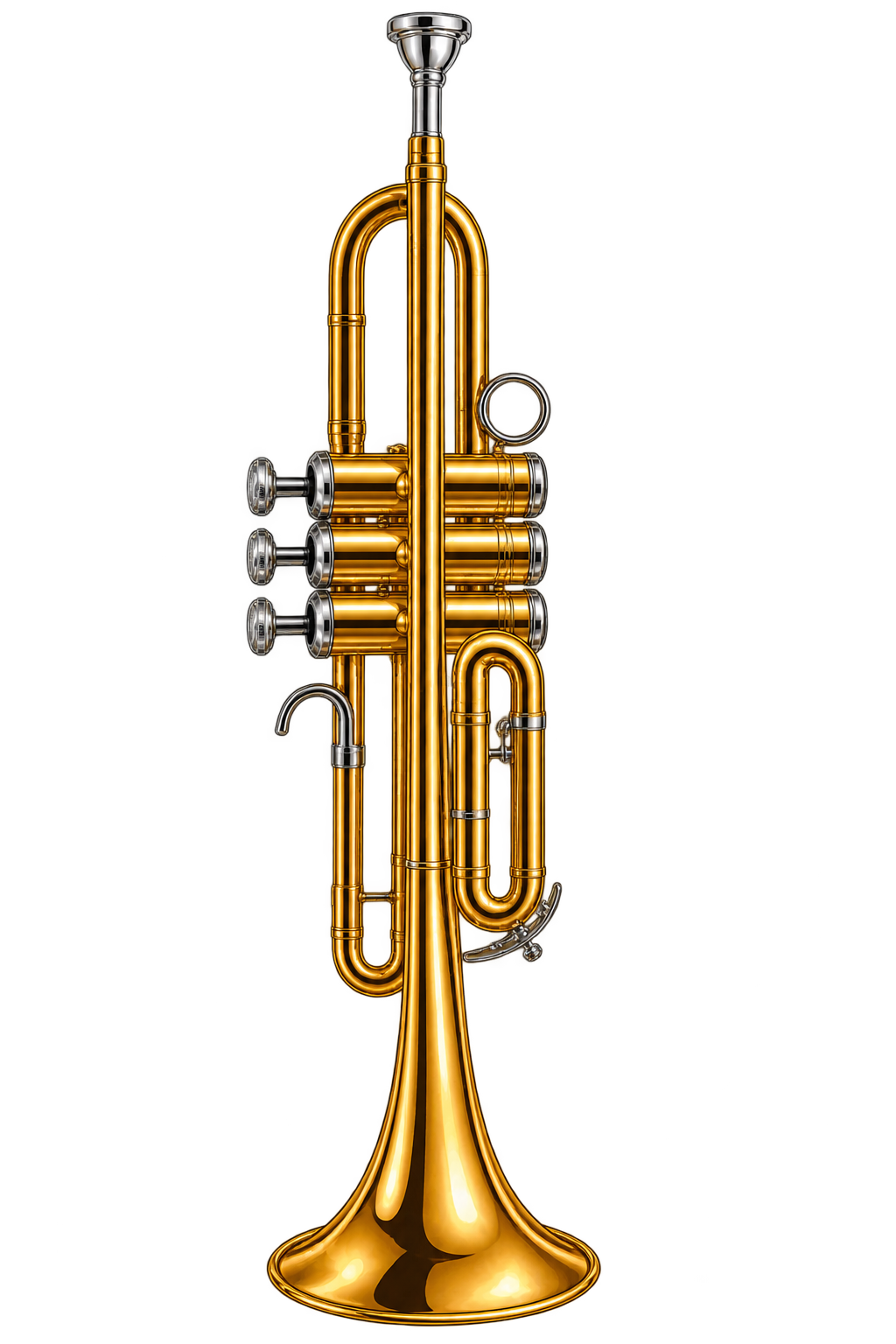

Trumpet
Trumpet

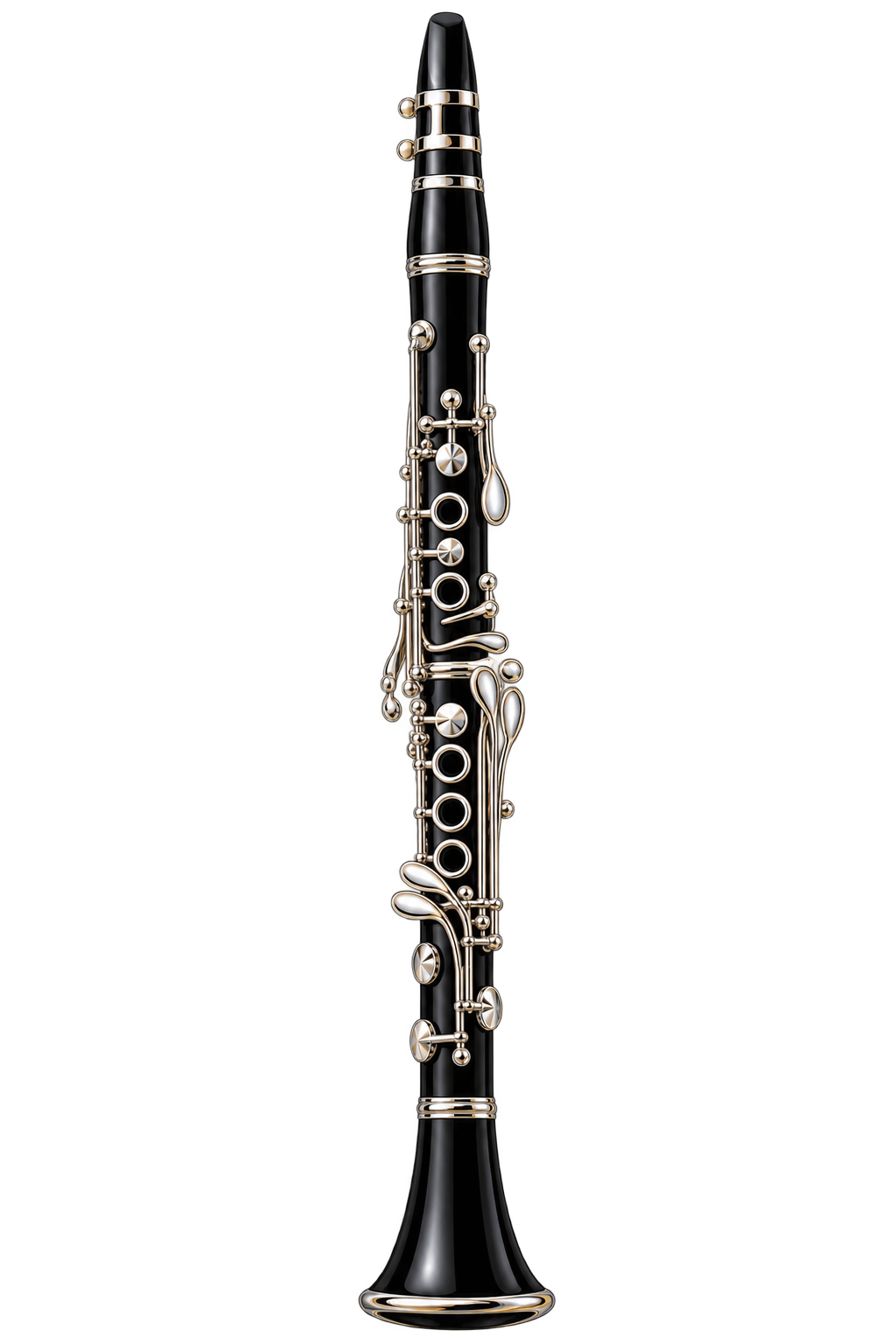

Clarinet
Clarinet

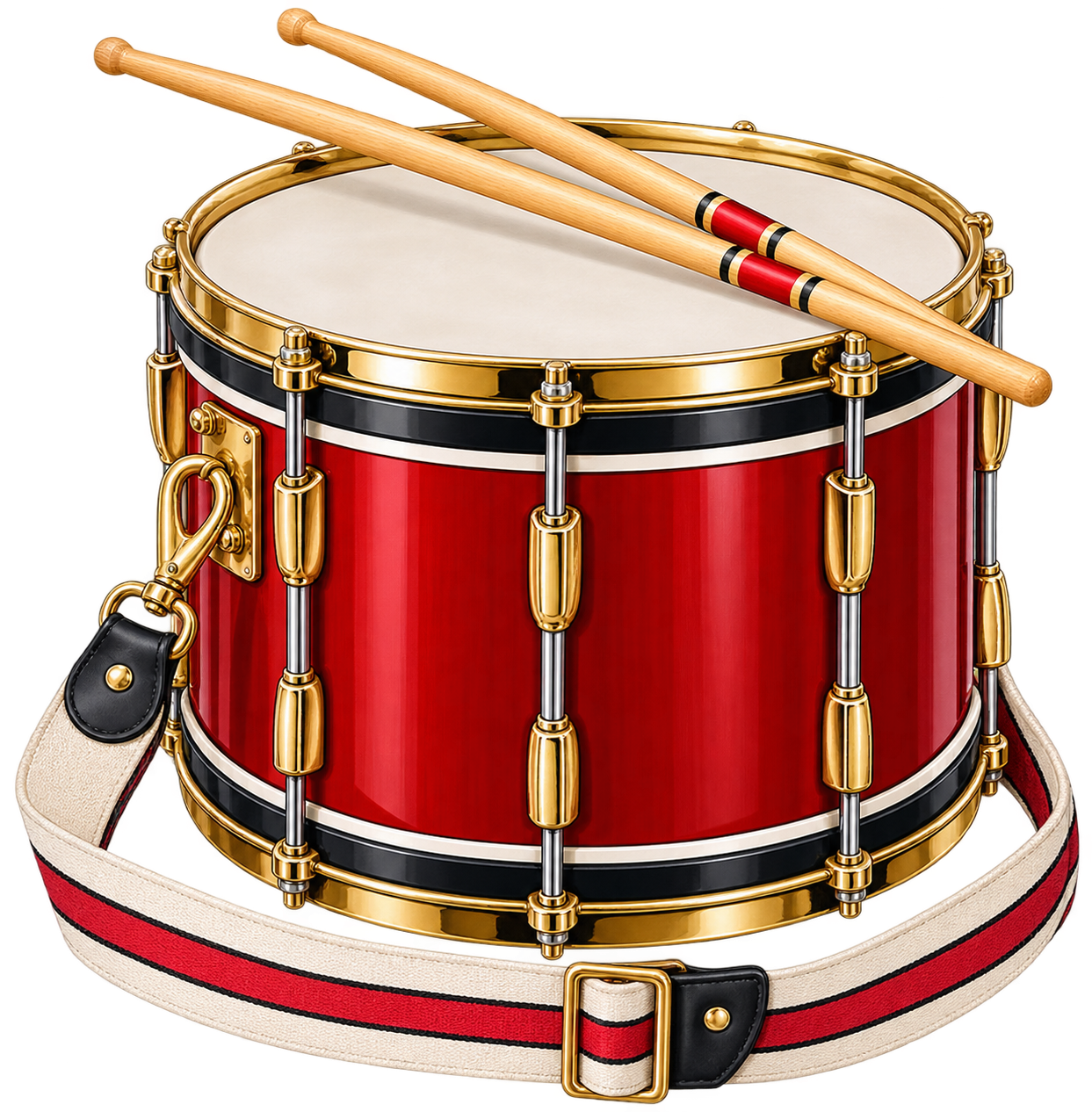

Side Drum
Side Drum

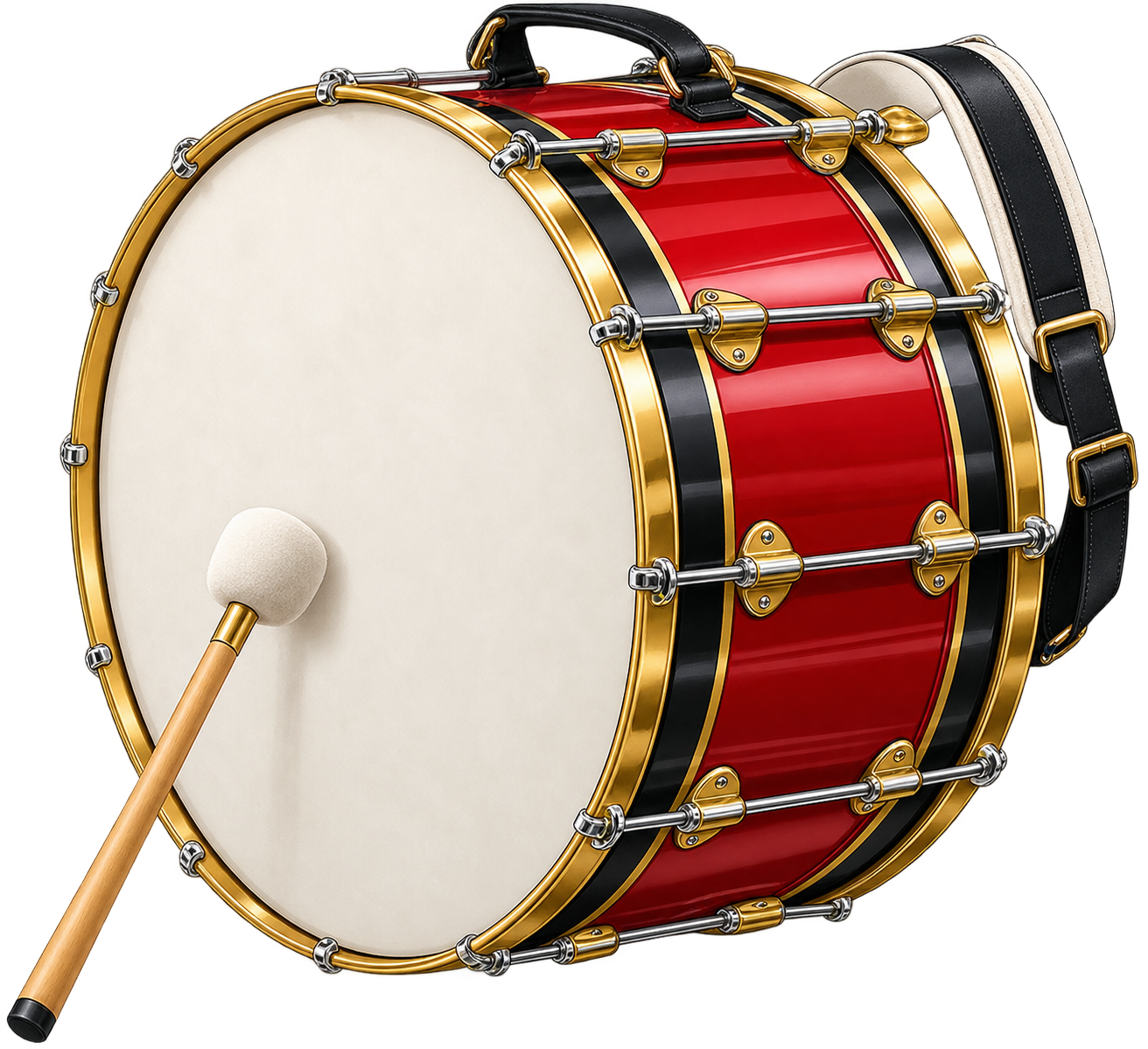

Bass Drum
Bass Drum
1.

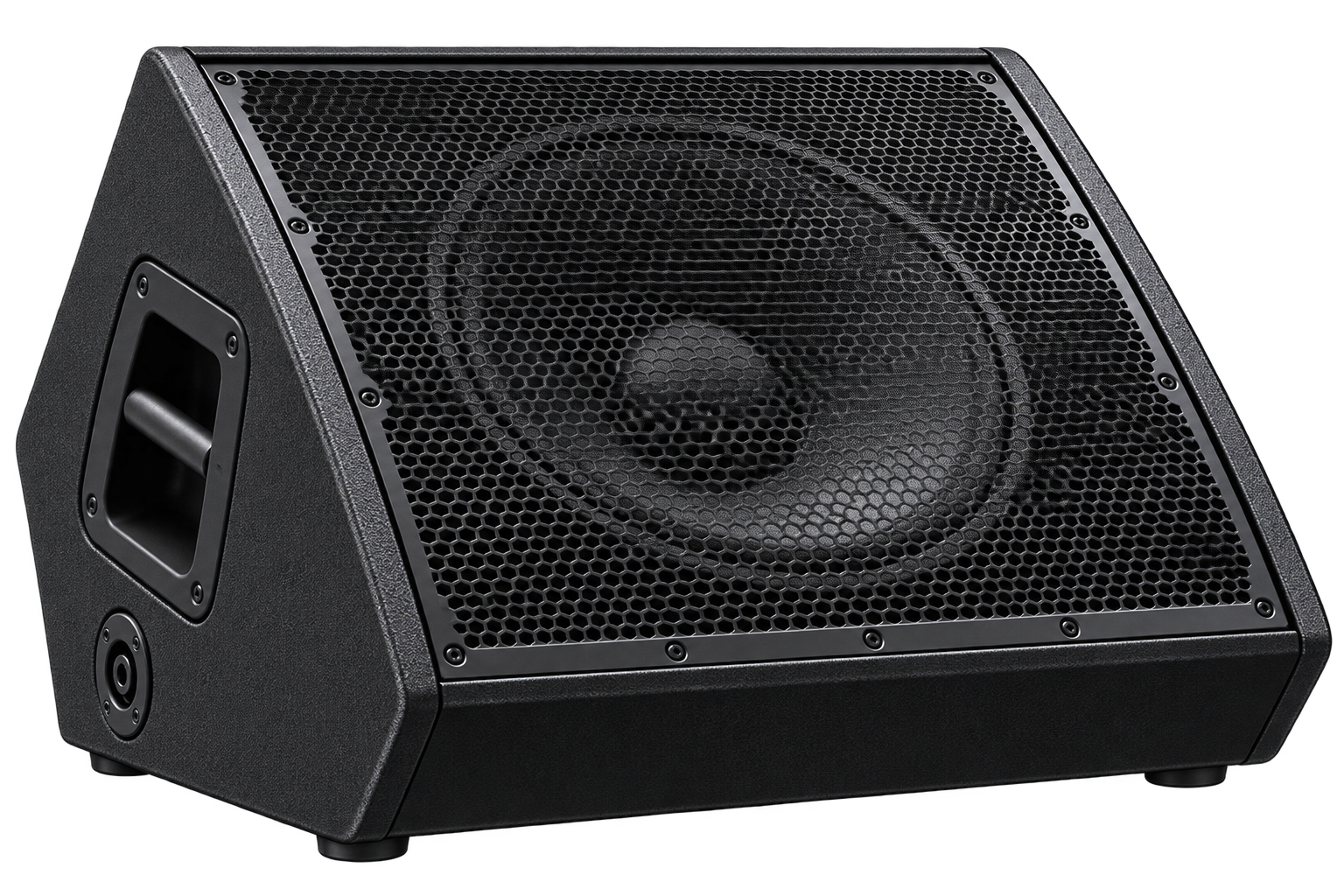

Stage Monitors
Stage Monitor
MONITOR
Stage Monitor
MONITOR
Stage Monitor
MONITOR
Stage Monitor
MONITOR
Stage Monitor
MONITOR
Stage Monitor
MONITOR
2.

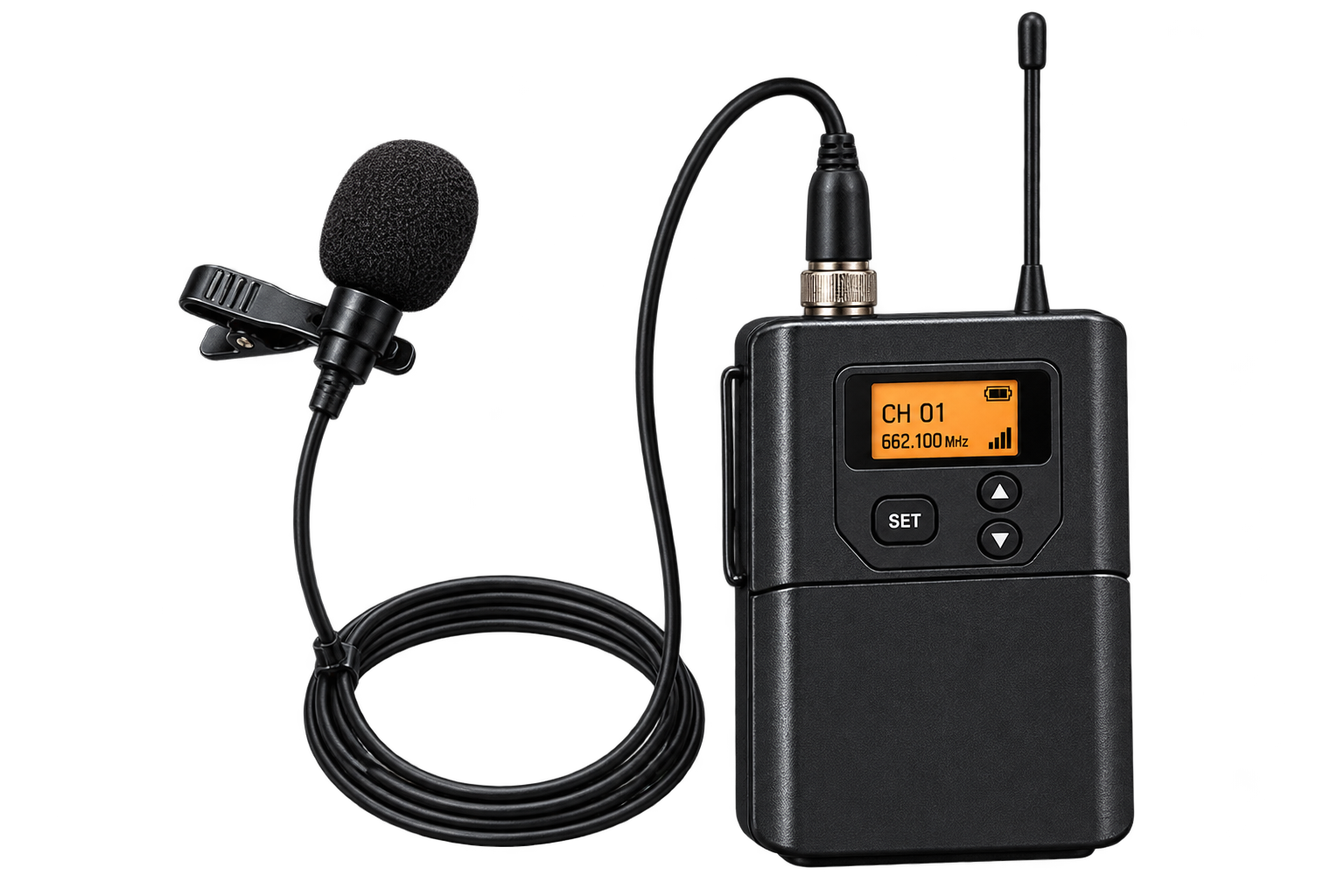

Wireless Clip Microphone
Wireless Clip Microphone
Shure PGA 98H
or
Sennheiser e908T
Wireless Clip Microphone
Shure PGA 98H
or
Sennheiser e908T
Wireless Clip Microphone
Shure PGA 98H
or
Sennheiser e908T
Wireless Clip Microphone
Shure PGA 98H ×2
or
Sennheiser e908T
Wireless Clip Microphone
Sennheiser E604
Wireless Clip Microphone
Sennheiser E604 ×2
3.
Cabled Instrument Microphones & Stand Position
If wireless option is not available

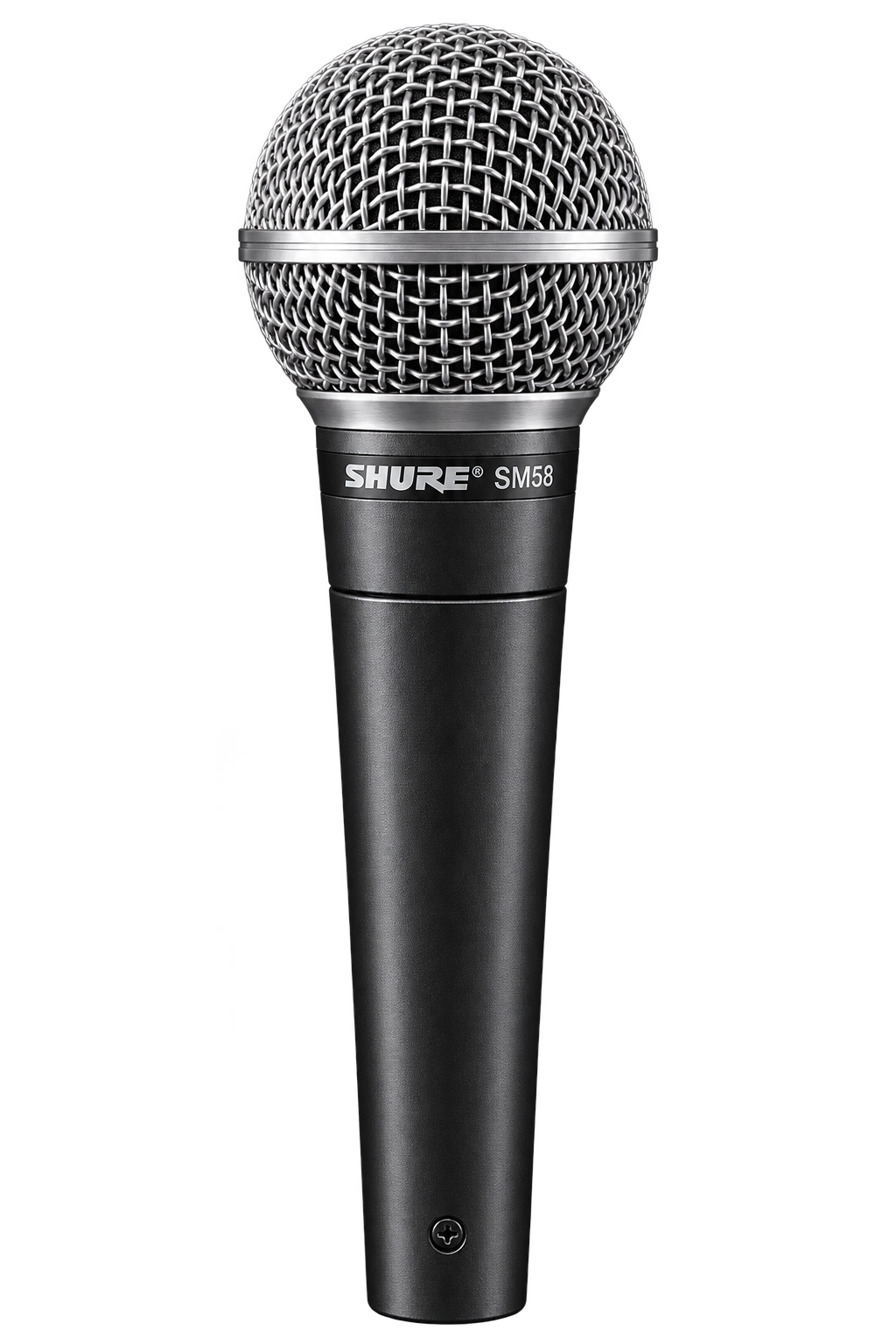

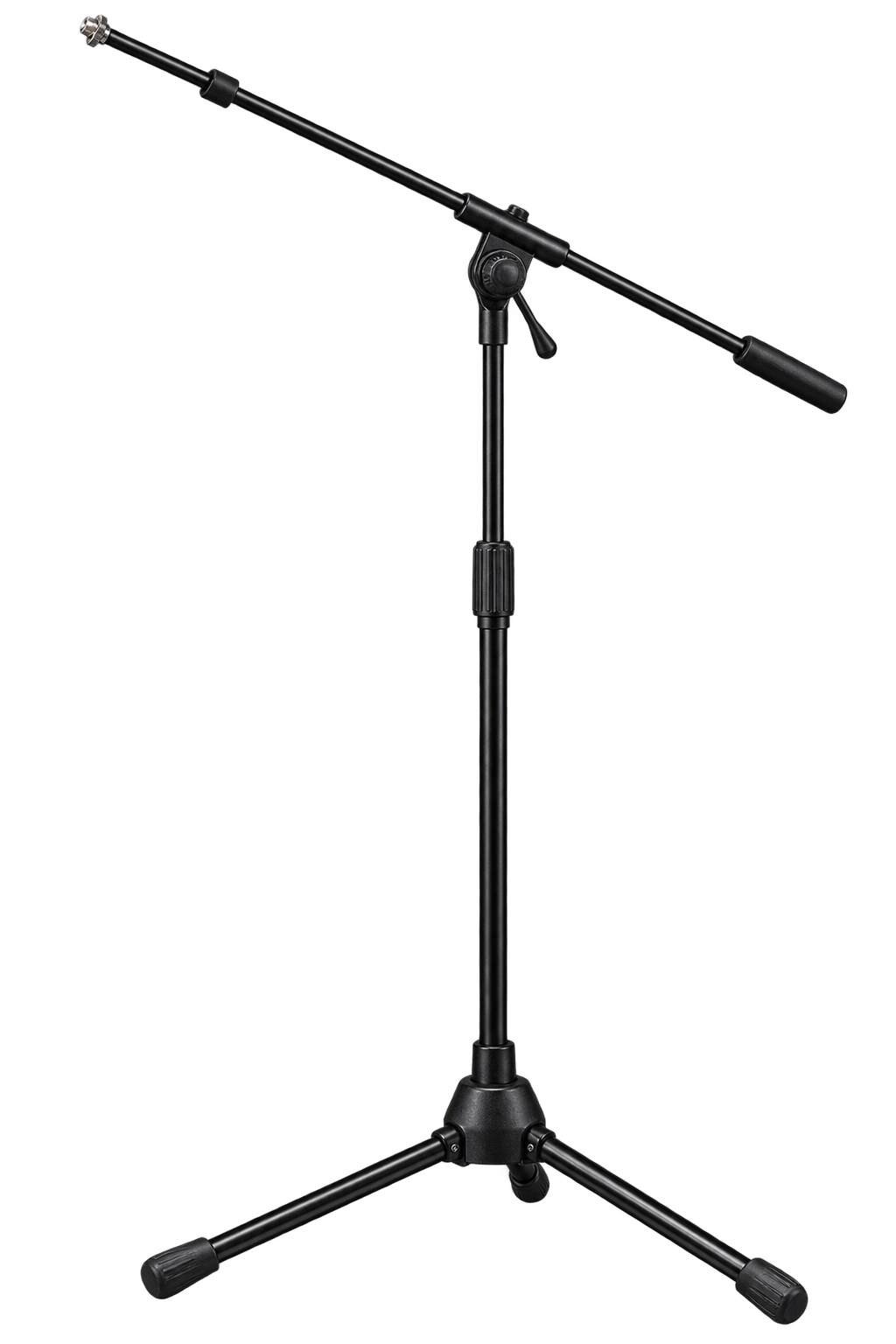

SM58 Boom Microphone Stand
SM58
Boom mic stand positioned behind musician
SM58 Boom Microphone Stand
SM58
Boom mic stand positioned behind musician
SM58 Boom Microphone Stand
SM58
Boom stand in front of musician
SM58 Boom Microphone Stand
SM58
Boom stand in front of musician

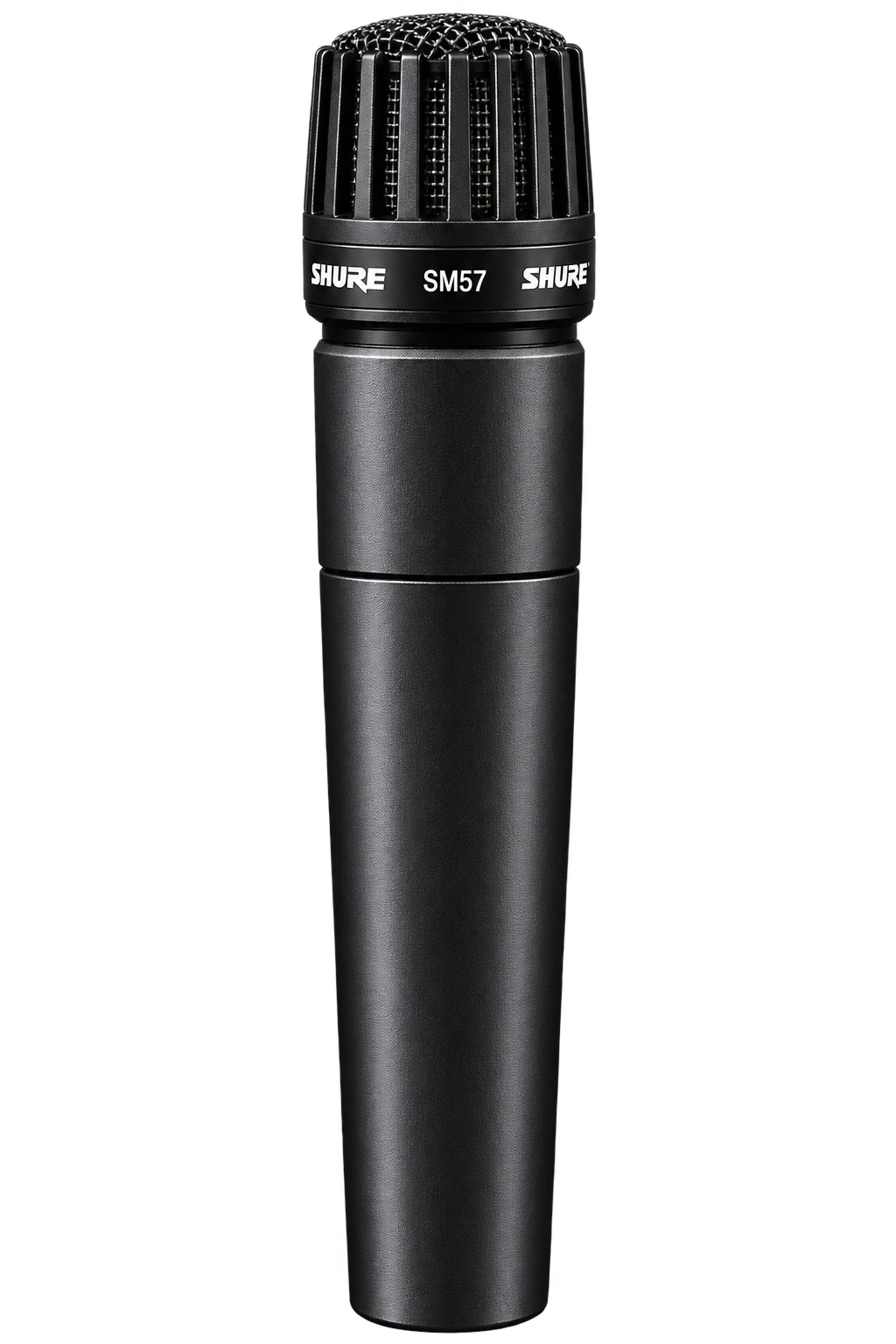

SM57 Boom Microphone Stand
SM57
Boom stand in front of musician
SM57 SM57 Boom Microphone Stand Boom Microphone Stand
SM57 ×2
2× boom stands at either side of the drum
4.

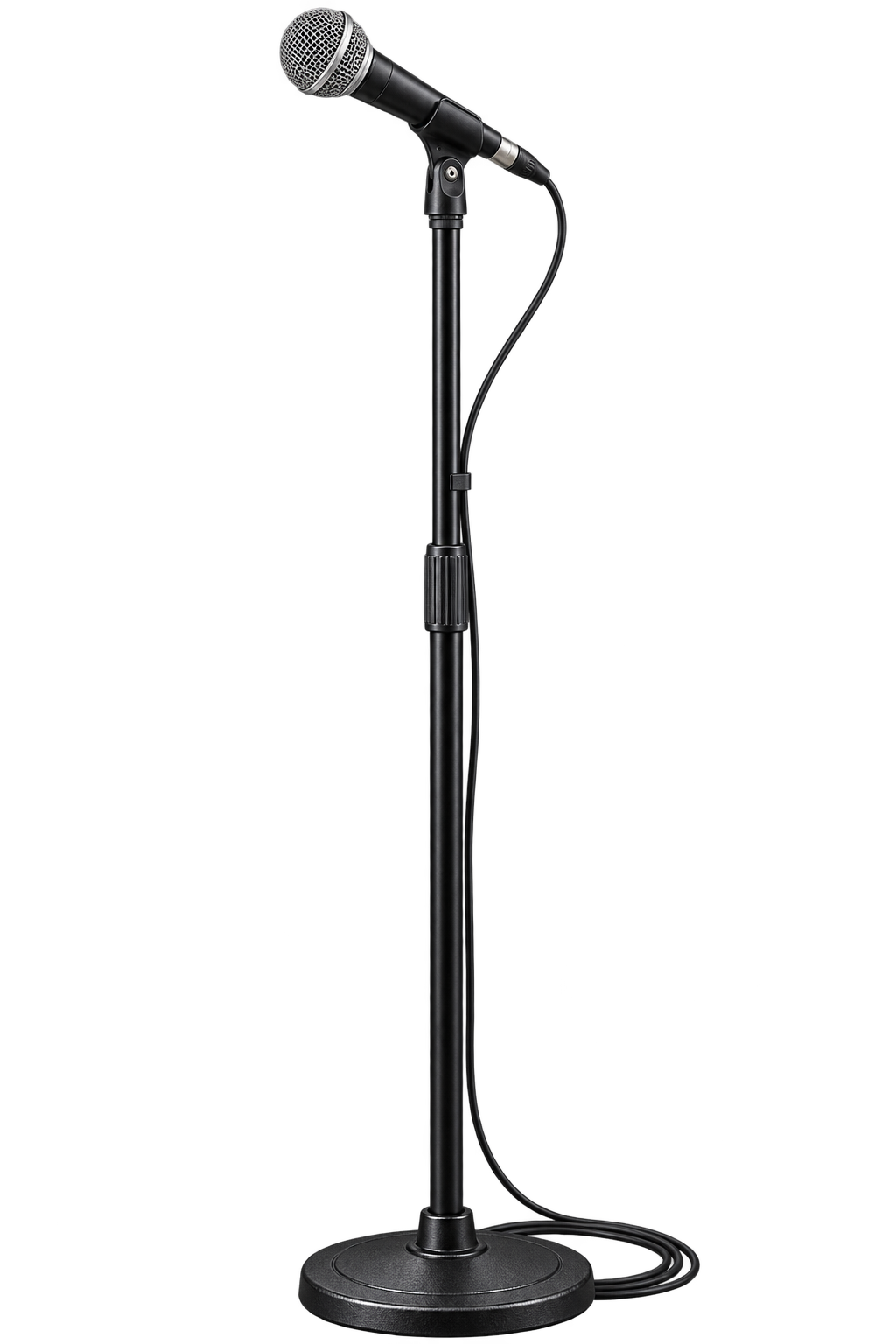

Vocal Microphone on Stand
Vocal Microphone on Stand
SM58
Vocal Microphone on Stand
SM58
Vocal Microphone on Stand
SM58
Vocal Microphone on Stand
SM58
Vocal Microphone on Stand
SM58
Vocal Microphone on Stand
SM58
5.
Dance Area
Dance Area
Minimum distance from monitors
4 m minimum from monitors   •   8 m minimum width
Floor Microphone
Floor Microphone
in the position
indicated
6.
Notes
Please provide a minimum dance area width of 8 metres.
The dance area should begin a minimum of 4 metres from the monitors.
Provide a floor microphone in the position indicated on the stage plan.

Lighting Requirements

1
The musicians' faces must be clearly seen while playing.
2
The dance area must be lighted when necessary. Use follow lights when a performer appears.
3
The main colour is white. Some orange filters should be used on both sides to create columns of orange light.

Technical Contact

Contact: Danish Neazi
